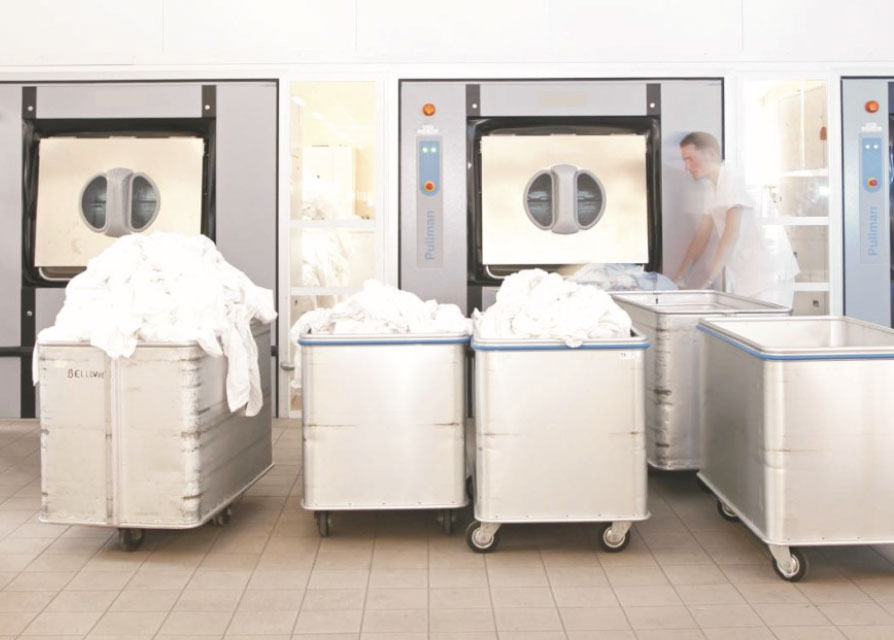

Barrier Washer

Barrier washers offer an ideal solution for sites that need to achieve a high level of hygiene by keeping soiled and clean linen completely separate so reducing any chance of cross infection in linen.

Barrier washers are the ideal washing solution for nursing homes, hospitals, and food manufacturing, Pharmaceuticals sites where there is a high requirement for reducing cross contamination from linen.
Barrier washers feature a dual access system whereby soiled laundry is loaded on one side of the machine and can only be unloaded at the end of the cycle from the opposite ‘clean’ side of the machine.

Barrier washer extractors are designed to Reduces risk of Hospital-Acquired-Infection (HAI) in hospital theatre linen laundries.

Benefits of Barrier Washer
  • Respect for “walk forward” as in HACCP principles or the International Food Standard.
  • Physical wall separates the laundry in two parts: soiled area and clean area.
  • No risk of contact or crossing between soiled and clean linen.
  • As an option, separate atmosphere pressures can be created between clean and soiled areas to prevent airborne re contamination.
  • Specific “hygienic” programs for decontamination of laundry.
  • Offers the best protection against the spreading of infections.

Specification

Model BLIBW-30 BLIBW-50 BLIBW-100
Washing Capacity kg 30 50 100
Rolling Container Dimension mm 800 x 1030 880 x 1050 950 x 1450
Rolling Container Speed r/min could set by frequency inverter
Cold water / hot water, and Steam Intel inch 1 1 1
Drainge inch 3 3 6
Net Weight kg 1010 1340 1800
Dimension mm 1320 x 1100 x 1820 1720 x 1100 x 1820 1850 x 1330 x 2200
Motor Power kw 4 5.5 7.5

The machine is equipped with liquid detergent signals as standard. The inner/outer drums and partition fabricated from SS304 and robot welded to achieve unparalleled precision and balance. The automatic drum positioning aligns inner drum door to outer door, enhances operator safety and the need to position inner drum with bare hands. It also has automatic outer door locking and unlocking with pneumatic system and the largest inner drum door, making loading and unloading operations fast and easy.The washing stuff can be put into the washer through the inlet of the unclean area while after washing they can be taken out through the outlet of the clean area. This is an ideal solution for sanitary washing in hospitals because it can prevent the washing stuff from being contaminated after cleaned by the germs during the loading and unloading process in the un-clean area.
