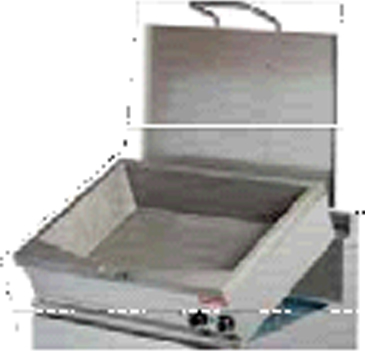

Tilting Brat Pan 900 Series

ITEM DESCRIPTION :

  • Body, paneling and pan made of stainless steel.
  • The bottom of pan is reinforced by special stainless steel plate, 8 mm.
  • Easy to fill and to wash with the water tap on top.
  • The tilting mechanism is manual operated.
  • Available in gas or electric version.

For Gas Device :

  • LP or natural gas operated.
  • Burner is provided with ignition, pilot, thermocouple and thermostat.
  • If the pan is lifted up, the burner ignition gets to pilot position, so that
    usage safety is provided.
  • Gas devices are preset to liquid gas (G30).
  • Natural gas nozzles are enclosed.

For Electric Device :

  • Built in booster heater made of stainless steel.
  • Controlled by safety thermostat.
  • If the pan is lifted up, the heating element gets to stop position,
    so that usage safety is provided.









Model Dimension (mm) Gross (Kg) Volume(m³) Power (W) Energy
BLTBPE910 1000 x 900 x 900 95 1.84 21000 Gas
BLTBPE910 1000 x 900 x 900 95 1.84 15000 440V/50Hz
