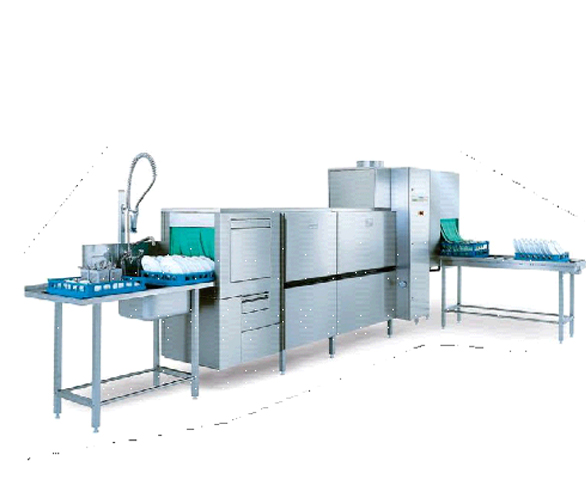

CONVEYOR TYPE DISHWASHER

ITEM DESCRIP TION :

  • MODEL LINEA ACL 150,Heat recovery unit:Out put- 1st Speed Rack -95
  • rack/h and 1710 dishes /hRCD Rinse Control Device-Wah tank – 100 ltrs
  • Steam Condenser-Wash pump 1.1 KW, 9 KW
  • Auto timer-Rinse unit water consumption 285 ltrs / hr,
  • Double shik execution-Dryer electric load 6 kw
  • Total Electric load : 24 kw, 440 V AC
  • Stainless steel body
  • Crate size (mm): 500 x 500
  • Drying Tunnel: Optional
  • Two speed conveyor
  • Two pieces of washing
  • Boiler power: 27 KW
  • Tank Power: 9 KW
  • Drying unit motor power: 9 KW
  • Motor property for conveyor type dishwasher without pre-washing unit types 35 kw 2800 rpm x 2
  • Motor property for pre-washing machines 35 kw 2800 rpm x 3
  • Full automatic washing operation at 55Q C, rinsing operation with hot water at 80-85Q
  • 24 v controlling current provides security during the
  • Magnetic security
  • Stainless steel
Model Description Exterior Dimension (mm) Capacity Gross(Kg) Volume(m 3) Power (W) Energy
BLCD2000 Dishwasher without Drying Tunnel 1750 X 830 X 1500 2000 plates/hr 290 3.97 38000 440 V/50Hz
BLCD2000 Dishwasher with Drying Tunnel 2040 X 830 X 1850 2000 plates/hr 303 4.21 50000 440V/50Hz
